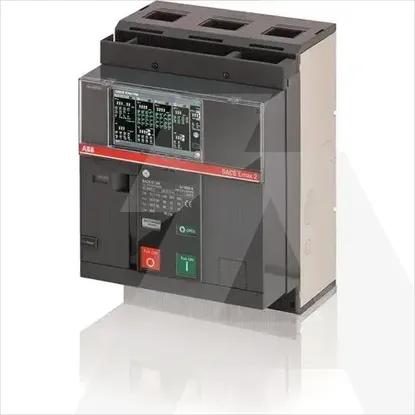

1SDA070862R1 | E1.2B 1600 EKIP DIP LSI 3P F F
Code: 1613898
ManufacturerABB
Catalog number1SDA070862R1
TypeE1.2B 1600 Ekip Dip LSI 3p F F
Category-
EAN code8015644747121
Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Type of control elementPush button
Number of auxiliary contacts as change-over contact4
DIN rail (top hat rail) mounting optionalNo
Motor drive integratedNo
Motor drive optionalYes
Integrated earth fault protectionNo
With switched-off indicatorYes
Overload release current setting640.0 - 1600A
Type of electrical connection of main circuitBolt connection
Adjustment range undelayed short-circuit release2400.0 - 24000A
Degree of protection (IP)IP30
Suitable for DIN rail (top hat rail) mountingNo
With under voltage releaseNo
Adjustment range short-term delayed short-circuit release960.0 - 16000A
Device constructionBuilt-in device fixed built-in technique
Position of connection for main current circuitBack side
Complete device with protection unitYes
Rated permanent current Iu1600A
Number of poles3
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz42kA
