Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Number of poles3
Rated permanent current Iu1600A
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Number of auxiliary contacts as change-over contact4
Type of control elementPush button
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz42kA
Position of connection for main current circuitBack side
Integrated earth fault protectionNo
With switched-off indicatorYes
Overload release current setting640.0 - 1600A
Degree of protection (IP)IP30
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Type of electrical connection of main circuitBolt connection
Motor drive optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release2400.0 - 24000A
Adjustment range short-term delayed short-circuit release960.0 - 16000A
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

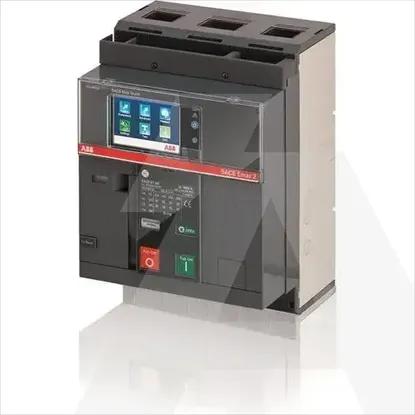

1SDA070865R1 | E1.2B 1600 EKIP TOUCH LSI 3P F F
