Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
With switched-off indicatorYes
Number of poles3
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Number of auxiliary contacts as change-over contact4
Position of connection for main current circuitBack side
Rated permanent current Iu3200A
Adjustment range short-term delayed short-circuit release1920.0 - 32000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
With integrated under voltage releaseNo
Overload release current setting1280.0 - 3200A
Rated voltage690 - 690V
Type of control elementPush button
Number of auxiliary contacts as normally open contact0
Adjustment range undelayed short-circuit release4800.0 - 48000A
Suitable for DIN rail (top hat rail) mountingNo
Degree of protection (IP)IP30
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

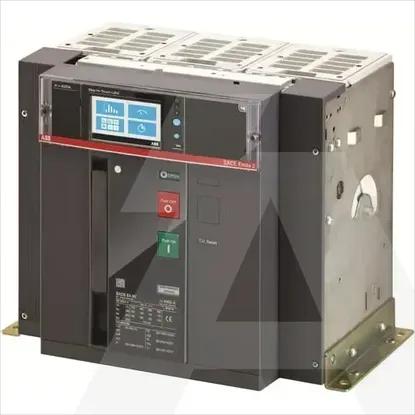

1SDA071145R1 | E4.2N 3200 EKIP TOUCH LSI 3P FHR
