Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu2500A
Number of poles4
Overload release current setting1000.0 - 2500A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact4
Rated voltage690 - 690V
With integrated under voltage releaseNo
Position of connection for main current circuitBack side
Degree of protection (IP)IP30
Type of electrical connection of main circuitBolt connection
Adjustment range undelayed short-circuit release3750.0 - 37500A
DIN rail (top hat rail) mounting optionalNo
Type of control elementPush button
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
Adjustment range short-term delayed short-circuit release1500.0 - 25000A
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
Motor drive integratedNo
Complete device with protection unitYes
With switched-off indicatorYes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

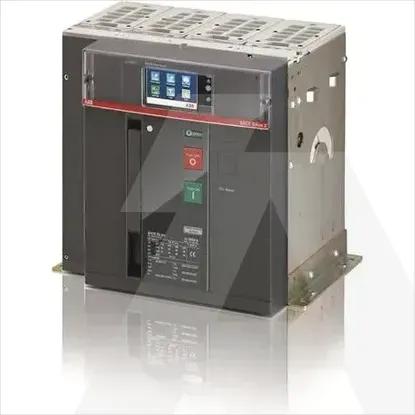

1SDA071695R1 | E2.2N 2500 EKIP TOUCH LSI 4P FHR
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated permanent current Iu
2500A
Number of poles
4
Overload release current setting
1000.0 .. 2500A
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
4
Rated voltage
690 .. 690V
With integrated under voltage release
Position of connection for main current circuit
Back side
Degree of protection (IP)
IP30
Type of electrical connection of main circuit
Bolt connection
Adjustment range undelayed short-circuit release
3750.0 .. 37500A
DIN rail (top hat rail) mounting optional
Type of control element
Push button
Suitable for DIN rail (top hat rail) mounting
Motor drive optional
Adjustment range short-term delayed short-circuit release
1500.0 .. 25000A
Integrated earth fault protection
Device construction
Built-in device fixed built-in technique
Motor drive integrated
Complete device with protection unit
With switched-off indicator
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
66kA
