Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu5000A
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of poles4
Degree of protection (IP)IP30
Overload release current setting2000.0 - 5000A
Rated voltage690 - 690V
Number of auxiliary contacts as change-over contact4
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Adjustment range short-term delayed short-circuit release3000.0 - 50000A
With switched-off indicatorYes
Type of control elementPush button
Adjustment range undelayed short-circuit release7500.0 - 75000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Suitable for DIN rail (top hat rail) mountingNo
Position of connection for main current circuitBack side
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
Integrated earth fault protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

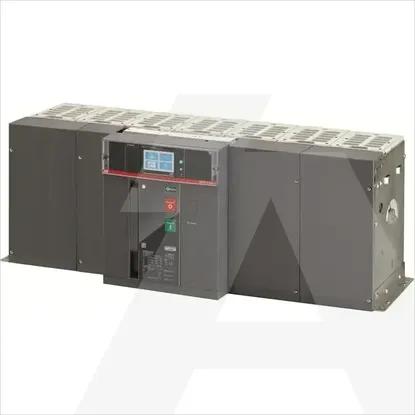

1SDA071985R1 | E6.2H/F 5000 EKIP TOUCH LSI 4P FHR
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated permanent current Iu
5000A
With integrated under voltage release
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of poles
4
Degree of protection (IP)
IP30
Overload release current setting
2000.0 .. 5000A
Rated voltage
690 .. 690V
Number of auxiliary contacts as change-over contact
4
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Adjustment range short-term delayed short-circuit release
3000.0 .. 50000A
With switched-off indicator
Type of control element
Push button
Adjustment range undelayed short-circuit release
7500.0 .. 75000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
100kA
Suitable for DIN rail (top hat rail) mounting
Position of connection for main current circuit
Back side
Motor drive optional
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Complete device with protection unit
Integrated earth fault protection
