Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Degree of protection (IP)IP30
Integrated earth fault protectionNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
Rated permanent current Iu800A
Suitable for DIN rail (top hat rail) mountingNo
Overload release current setting320.0 - 800A
Motor drive optionalYes
With switched-off indicatorYes
Number of auxiliary contacts as normally closed contact0
Complete device with protection unitYes
Position of connection for main current circuitConnection at separate chassis part
DIN rail (top hat rail) mounting optionalNo
Type of electrical connection of main circuitConnection at separate chassis part
Device constructionBuilt-in device slide-in technique (withdrawable)
Rated voltage690 - 690V
Type of control elementPush button
Adjustment range undelayed short-circuit release1200.0 - 12000A
With integrated under voltage releaseNo
Number of poles3
Number of auxiliary contacts as change-over contact4
Adjustment range short-term delayed short-circuit release480.0 - 8000A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

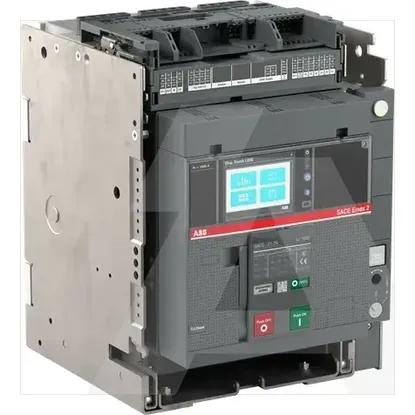

1SDA072115R1 | E1.2N 800 EKIP TOUCH LSI 3P WMP
