Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as change-over contact4
Overload release current setting640.0 - 1600A
With integrated under voltage releaseNo
Rated permanent current Iu1600A
Number of auxiliary contacts as normally open contact0
Degree of protection (IP)IP30
Type of control elementPush button
Type of electrical connection of main circuitConnection at separate chassis part
Number of auxiliary contacts as normally closed contact0
Position of connection for main current circuitConnection at separate chassis part
Number of poles3
Motor drive integratedNo
Rated voltage690 - 690V
Integrated earth fault protectionNo
Adjustment range short-term delayed short-circuit release960.0 - 16000A
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
Adjustment range undelayed short-circuit release2400.0 - 24000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
Suitable for DIN rail (top hat rail) mountingNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Motor drive optionalYes
With switched-off indicatorYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

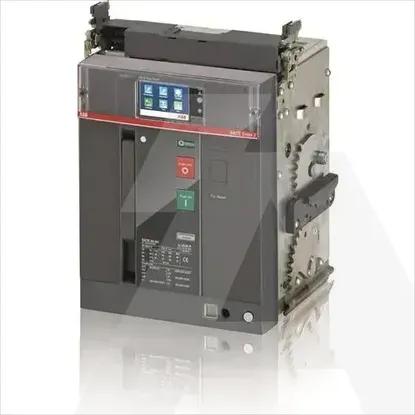

1SDA072345R1 | E2.2N 1600 EKIP TOUCH LSI 3P WMP
