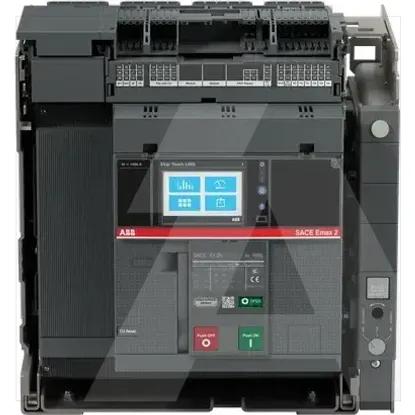

1SDA072705R1 | E1.2N 630 EKIP TOUCH LSI 4P WMP
Code: 1615421
ManufacturerABB
Catalog number1SDA072705R1
TypeE1.2N 630 Ekip Touch LSI 4p WMP
Category-
EAN code8015644765552
Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Position of connection for main current circuitConnection at separate chassis part
Number of auxiliary contacts as change-over contact4
Overload release current setting252.0 - 630A
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Degree of protection (IP)IP30
With switched-off indicatorYes
Adjustment range undelayed short-circuit release945.0 - 9450A
Type of electrical connection of main circuitConnection at separate chassis part
Type of control elementPush button
Motor drive integratedNo
Adjustment range short-term delayed short-circuit release378.0 - 6300A
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Complete device with protection unitYes
Rated permanent current Iu630A
Number of poles4
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
