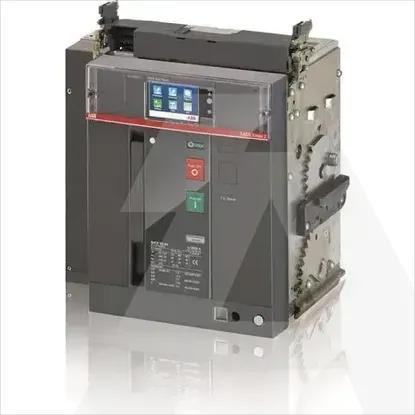

1SDA073045R1 | E2.2N 2500 EKIP TOUCH LSI 4P WMP
Code: 1615721
ManufacturerABB
Catalog number1SDA073045R1
TypeE2.2N 2500 Ekip Touch LSI 4p WMP
Category-
EAN code8015644768959
Details
- •IZVLACIVI PREKIDAC EMAX2, CETVEROPOLNI, IN=2500A,
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
Type of control elementPush button
Motor drive integratedNo
Degree of protection (IP)IP30
Adjustment range undelayed short-circuit release3750 - 37500A
Overload release current setting1000 - 2500A
Position of connection for main current circuitConnection at separate chassis part
Adjustment range short-term delayed short-circuit release1500 - 25000A
Number of auxiliary contacts as change-over contact4
Type of electrical connection of main circuitConnection at separate chassis part
With switched-off indicatorYes
Motor drive optionalYes
Device constructionBuilt-in device slide-in technique (withdrawable)
Integrated earth fault protectionNo
Complete device with protection unitYes
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Rated permanent current Iu2500A
Number of poles4
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
