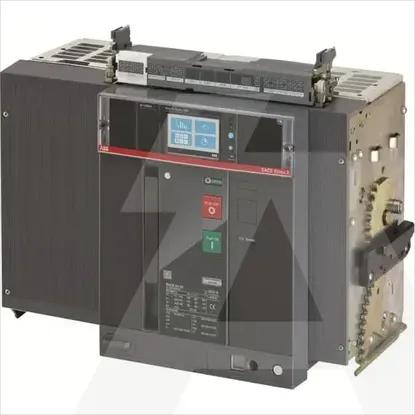

1SDA073175R1 | E4.2N 4000 EKIP TOUCH LSI 4P WMP
Code: 1615811
ManufacturerABB
Catalog number1SDA073175R1
TypeE4.2N 4000 Ekip Touch LSI 4p WMP
Category-
EAN code8015644770259
Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Overload release current setting1600.0 - 4000A
With integrated under voltage releaseNo
Number of auxiliary contacts as change-over contact4
Motor drive integratedNo
Degree of protection (IP)IP30
Position of connection for main current circuitConnection at separate chassis part
Type of electrical connection of main circuitConnection at separate chassis part
With switched-off indicatorYes
Type of control elementPush button
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Adjustment range undelayed short-circuit release6000.0 - 60000A
Adjustment range short-term delayed short-circuit release2400.0 - 40000A
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
Complete device with protection unitYes
Rated permanent current Iu4000A
Number of poles4
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
