Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Rated operation power at AC-23, 400 V-kW
Switching power at 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Type of control elementPush button
Version as safety switchNo
Version as emergency stop installationNo
Rated permanent current Iu4000A
Version as reversing switchNo
Number of switches0
Version as maintenance-/service switchNo
Version as main switchYes
Motor drive optionalYes
Max. rated operation voltage Ue AC690V
Number of poles3
Rated permanent current at AC-23, 400 V4000A
Rated operating voltage690 - 690V
Voltage release optionalYes
Device constructionBuilt-in device fixed built-in technique
Rated short-time withstand current lcw100kA
Rated permanent current at AC-21, 400 V4000A
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Colour control elementOther
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Degree of protection (IP), front sideIP30
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

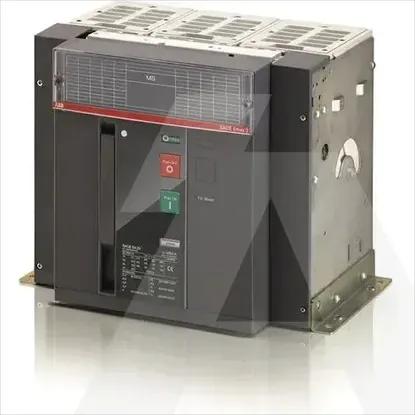

1SDA073423R1 | E4.2V/MS 4000 3P FHR
