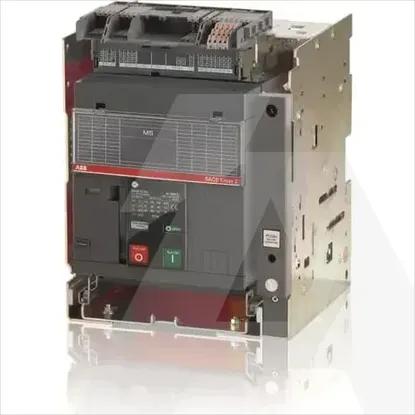

1SDA073476R1 | E1.2B/MS 630 3P WMP
Code: 1616052
ManufacturerABB
Catalog number1SDA073476R1
TypeE1.2B/MS 630 3p WMP
CategorySwitch disconnector
EAN code8015644773267
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP30
InterlockableNo
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Number of switches0
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V-kW
Version as emergency stop installationNo
Version as safety switchNo
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchNo
Version as main switchYes
Colour control elementOther
Rated short-time withstand current lcw42kA
Type of control elementPush button
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V630A
Version as reversing switchNo
Motor drive optionalYes
Degree of protection (NEMA)Other
Voltage release optionalYes
Rated permanent current at AC-23, 400 V630A
Rated permanent current Iu630A
Number of poles3
Max. rated operation voltage Ue AC690V
