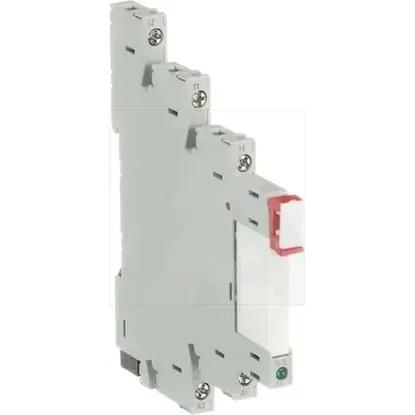

1SVR405541R6110 | CR-S110VADC1CRS
Code: 1617265
ManufacturerABB
Catalog number1SVR405541R6110
TypeCR-S110VADC1CRS
CategorySwitching relay
EAN code4013614499326
Details
- •Relays
- •Switching relay
- •10 KOM
- •ABB
Technical specifications
Drive, polarizationPolarized
Drive, switching attitudeMono stable
Depth88.5mm
Width6.3mm
With detachable clampsNo
Height76.4mm
Type of switch contactSingle contact
With forced-guided contactsNo
Complete with socketYes
With LED indicationNo
Rated control supply voltage Us at AC 60HZ110 - 110V
Type of electric connectionScrew connection
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Degree of protection (IP)IP20
Rated control supply voltage Us at DC110 - 110V
Nominal current6A
Rated control supply voltage Us at AC 50HZ110 - 110V
Voltage type for actuatingAC/DC
Number of contacts as change-over contact1
