Details
- •Relays
- •Voltage monitoring relay
- •1 KOM
- •ABB
Technical specifications
Width108mm
Three-phase under voltage possibleYes
Single-phase under voltage possibleYes
With detachable clampsNo
External power supply requiredNo
Depth67mm
Single-phase over voltage possibleYes
Height90mm
Three-phase over voltage possibleYes
Contains function DC-voltage hysteresisNo
Rated switch current-A
Voltage measuring range 10 - 540V
Three-phase hysteresis possibleYes
Type of electric connectionScrew connection
Rated control supply voltage Us at AC 60HZ24 - 240V
Single-phase hysteresis possibleYes
Type of voltage measuring rangeAC
Rated control supply voltage Us at AC 50HZ24 - 240V
Supply voltage AC 50 Hz- - -V
Voltage measuring range 2- - -V
Rated control supply voltage Us at DC24 - 240V
Contains function DC-over voltageNo
Contains function DC-under voltageNo
Supply voltage AC 60 Hz- - -V
Min. adjustable delay-on energization time-s
Response value voltage0 - 540V
Max. permitted off-delay time-s
Supply voltage DC- - -V
Number of contacts as normally closed contact-
Number of contacts as change-over contact3
Operating voltage at AC 60 Hz- - -V
Number of contacts as normally open contact-
Min. adjustable off-delay time-s
Operating voltage at DC- - -V
Operating voltage at AC 50 Hz- - -V
Max. permitted delay-on energization time-s
Voltage type for actuatingAC/DC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

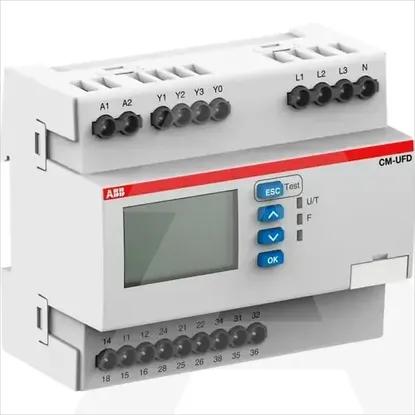

1SVR560730R3401 | CM-UFD.M31
