Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Voltage typeAC/DC
Built-in depth69mm
Release characteristicC
Rated voltage230V
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Rated current4A
Current limiting class3
Pollution degree3
Over voltage category3
Width in number of modular spacings1
Connectable conductor cross section multi-wired0 - 25mm²
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Concurrently switching neutral conductorNo
Number of poles (total)1
Degree of protection (IP)IP20
Number of protected poles1
Connectable conductor cross section solid-core0 - 35mm²
Suitable for flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS271061R0044 | S201M-C4UC

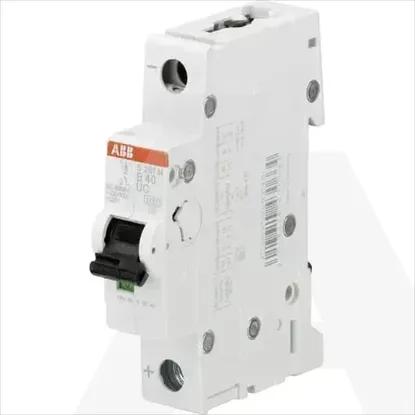

Main Product Image
