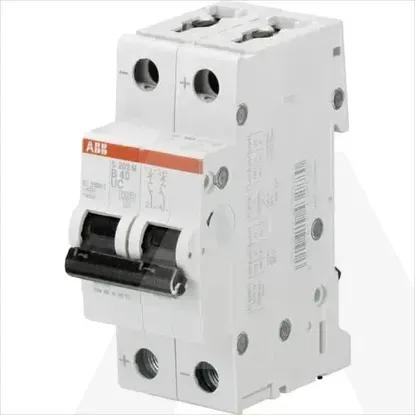

2CDS272061R0065 | S202M-B6UC
Code: 1617720
ManufacturerABB
Catalog number2CDS272061R0065
TypeS202M-B6UC
CategoryMiniature circuit breaker (MCB)
EAN code4013614432811
Details
- •MINIJATURNI PREKIDAC ZA AC/DC, 2P, 6A, B KRIVULJA,
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Pollution degree2
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Voltage typeAC/DC
Rated voltage400V
Width in number of modular spacings2
Degree of protection (IP)IP20
Current limiting class3
Number of protected poles2
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0 - 35mm²
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Over voltage category3
Rated current6A
Release characteristicB
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
