Details
- •Relays
- •Residual current monitoring relay
- •1 KOM
- •ABB
Technical specifications
Rated control supply voltage Us at DCV
Min. adjustable delay-on energization time0s
Number of contacts as normally closed contact-
Number of contacts as normally open contact-
Type of electric connectionScrew connection
Voltage type for actuatingAC
With detachable clampsNo
Rated control supply voltage Us at AC 50HZ110 - 400V
FunctionFor AC-current system
Rated control supply voltage Us at AC 60HZ110 - 400V
Rated frequency50 - 60Hz
Response value amperage 130 - 30mA
Number of contacts as change-over contact2
Rated voltage110 - 400V
Error registration possibleNo
Max. permitted delay-on energization time5s
Indication of difference currentYes
Response value amperage 230000 - 30000mA
Width72mm
Height72mm
Depth88mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

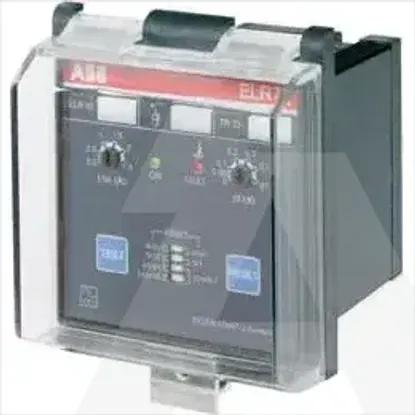

2CSG152424R1202 | ELR72P
Details
- Relays
- Residual current monitoring relay
- 1 KOM
- ABB
DetailsTechnical specificationsFrom same serie
Technical specifications
Rated control supply voltage Us at DC
V
Min. adjustable delay-on energization time
0s
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Type of electric connection
Screw connection
Voltage type for actuating
AC
With detachable clamps
Rated control supply voltage Us at AC 50HZ
110 .. 400V
Function
For AC-current system
Rated control supply voltage Us at AC 60HZ
110 .. 400V
Rated frequency
50 .. 60Hz
Response value amperage 1
30 .. 30mA
Number of contacts as change-over contact
2
Rated voltage
110 .. 400V
Error registration possible
Max. permitted delay-on energization time
5s
Indication of difference current
Response value amperage 2
30000 .. 30000mA
Width
72mm
Height
72mm
Depth
88mm
