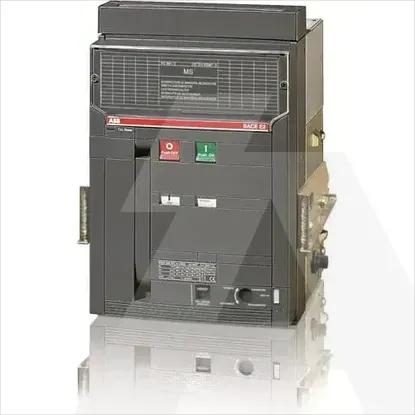

1SDA069494R1 | E2N/VF-MS 1600 3p W MP UL 1000VAC
Code: 1628773
ManufacturerABB
Catalog number1SDA069494R1
TypeE2N/VF-MS 1600 3p W MP UL 1000VAC
CategorySwitch disconnector
EAN code8015644702175
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Height461mm
Width324mm
Number of switches0
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Depth396.5mm
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
InterlockableNo
Width in number of modular spacings-
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP30
Type of control elementPush button
Version as maintenance-/service switchNo
Version as safety switchNo
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V-kW
Version as main switchYes
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw50kA
Colour control elementOther
Switching power at 400 V-kW
Device constructionBuilt-in device slide-in technique (withdrawable)
Suitable for floor mountingNo
Voltage release optionalYes
Degree of protection (NEMA)Other
Motor drive optionalYes
Version as reversing switchNo
Rated permanent current at AC-23, 400 V1600A
Rated permanent current at AC-21, 400 V1600A
With pre-assembled cablingNo
Rated permanent current Iu1600A
Number of poles3
Max. rated operation voltage Ue AC1000V
