Details

  • •Earthing, lightning and surge protection
  • •Surge protection device for terminal equipment
  • •1 KOM
  • •ABB

Technical specifications

Nominal voltage AC230V
Nominal load current12A
With remote signalling contactNo
Total discharge current (8/20) (L+N-PE)2kA
Mounting methodOther
Voltage protection level L-PE/N-PE-kV
Max. conductor cross section flexible (fine-strand)4mm²
Max. conductor cross section solid (solid, stranded)-mm²
Voltage protection level L-N1.2kV
Total discharge current (8/20) (L1+L2+L3+N-PE)-kA
Category type 3Yes
Max. continuous voltage DC-V
With interference suppressor filterNo
Signalling at the deviceOptic
Nominal voltage DC-V
Number of poles2
Voltage protection level1.2kV
Max. continuous voltage AC230V
Nominal discharge surge current (8/20) (L-N)1kA
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CSK1315CH | PRENAPONSKA ZASTITA, 75J, 250V

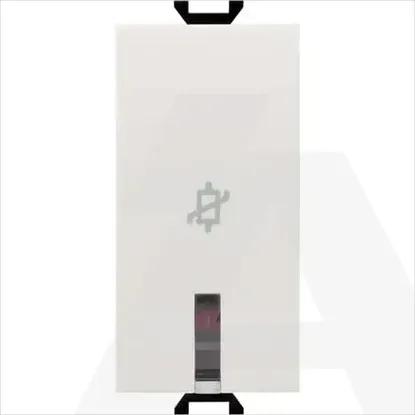

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Earthing, lightning and surge protection
  • Surge protection device for terminal equipment
  • 1 KOM
  • ABB

Technical specifications

Nominal voltage AC

230V

Nominal load current

12A

With remote signalling contact

Total discharge current (8/20) (L+N-PE)

2kA

Mounting method

Other

Voltage protection level L-PE/N-PE

-kV

Max. conductor cross section flexible (fine-strand)

4mm²

Max. conductor cross section solid (solid, stranded)

-mm²

Voltage protection level L-N

1.2kV

Total discharge current (8/20) (L1+L2+L3+N-PE)

-kA

Category type 3

Max. continuous voltage DC

-V

With interference suppressor filter

Signalling at the device

Optic

Nominal voltage DC

-V

Number of poles

2

Voltage protection level

1.2kV

Max. continuous voltage AC

230V

Nominal discharge surge current (8/20) (L-N)

1kA

Degree of protection (IP)

IP20
