Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Width145.5mm
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu250A
Depth82.5mm
Rated operation power at AC-3, 400 V-kW
Height150mm
Number of poles3
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
InterlockableYes
Number of switches-
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideOther
Type of control elementLong turning handle
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V145kW
Version as main switchYes
Voltage release optionalNo
Colour control elementBlack
Switching power at 400 V145kW
Rated permanent current at AC-21, 400 V250A
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Rated short-time withstand current lcw8kA
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Suitable for intermediate mountingNo
Version as safety switchNo
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V250A
Suitable for distribution board installationYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

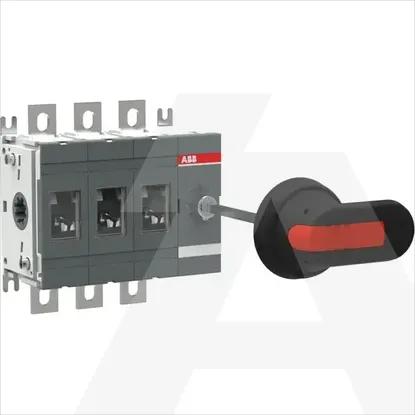

1SCA022720R8300 | OT250E30P
