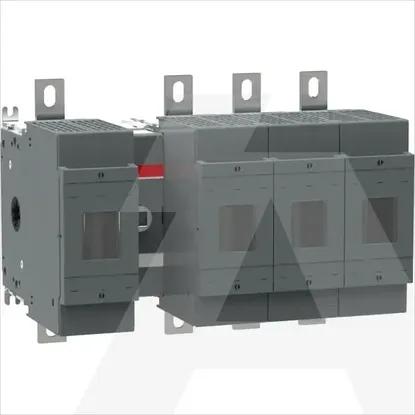

1SCA022754R3510 | OS400D13N2
Code: 1630836
ManufacturerABB
Catalog number1SCA022754R3510
TypeOS400D13N2
CategoryFuse switch disconnector
EAN code6417019245706
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Suitable for front mountingNo
Type of control elementShort thumb-grip
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq80kA
Motor drive optionalNo
Rated operation power at AC-23, 400 V400kW
Position control elementFront side
Motor drive integratedNo
Version as safety switchYes
Rated short-time withstand current lcw14kA
With error protectionNo
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Suitable for busbar mountingYes
Version as emergency stop installationNo
Equipped with connectorsYes
Rated permanent current Iu400A
Number of poles4
Suitable for fusesNH0, NH1, NH2
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022754R3510 | OS400D13N2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Suitable for front mounting
Type of control element
Short thumb-grip
Suitable for floor mounting
Conditioned rated short-circuit current Iq
80kA
Motor drive optional
Rated operation power at AC-23, 400 V
400kW
Position control element
Front side
Motor drive integrated
Version as safety switch
Rated short-time withstand current lcw
14kA
With error protection
Version as main switch
Type of electrical connection of main circuit
Bolt connection
Suitable for busbar mounting
Version as emergency stop installation
Equipped with connectors
Rated permanent current Iu
400A
Number of poles
4
Suitable for fuses
NH0, NH1, NH2
Max. rated operation voltage Ue AC
1000V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
