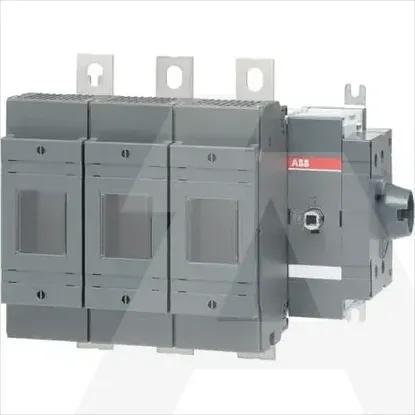

1SCA022871R2180 | OS250DS30
Code: 1630851
ManufacturerABB
Catalog number1SCA022871R2180
TypeOS250DS30
CategoryFuse switch disconnector
EAN code6417019338071
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V250kW
Version as main switchYes
Version as safety switchYes
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Motor drive integratedNo
Position control elementRight
Equipped with connectorsYes
With error protectionNo
Suitable for front mountingNo
Suitable for busbar mountingYes
Motor drive optionalNo
Rated short-time withstand current lcw8kA
Suitable for floor mountingNo
Rated permanent current Iu250A
Number of poles3
Suitable for fusesNH0, NH1
Max. rated operation voltage Ue AC1000V
