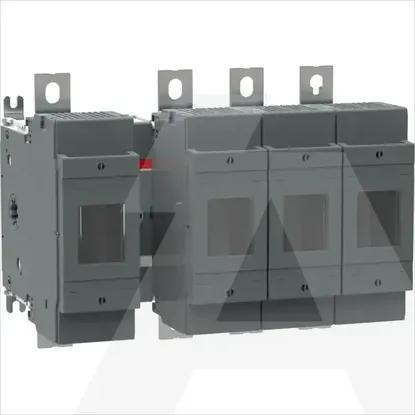

1SCA100221R1001 | OS250D13N1
Code: 1630852
ManufacturerABB
Catalog number1SCA100221R1001
TypeOS250D13N1
CategoryFuse switch disconnector
EAN code6417019352299
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as main switchYes
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Suitable for floor mountingNo
Motor drive optionalNo
Position control elementFront side
Suitable for busbar mountingYes
Version as safety switchYes
Rated short-time withstand current lcw8kA
Suitable for front mountingNo
With error protectionNo
Rated operation power at AC-23, 400 V250kW
Equipped with connectorsYes
Rated permanent current Iu250A
Number of poles4
Suitable for fusesNH0, NH1
Max. rated operation voltage Ue AC1000V
