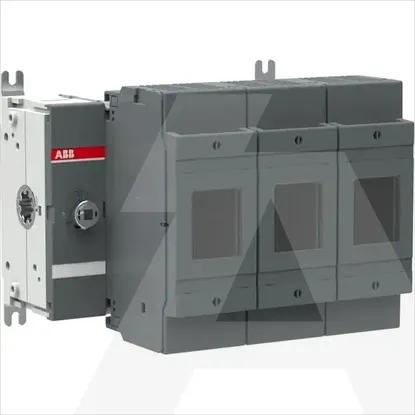

1SCA102197R1001 | OS250D03BB
Code: 1630856
ManufacturerABB
Catalog number1SCA102197R1001
TypeOS250D03BB
CategoryFuse switch disconnector
EAN code6417019369808
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Version as main switchYes
Suitable for busbar mountingYes
Equipped with connectorsYes
Rated operation power at AC-23, 400 V250kW
Suitable for front mountingNo
Suitable for floor mountingNo
Motor drive optionalNo
Position control elementLeft
Version as safety switchYes
With error protectionNo
Rated short-time withstand current lcw8kA
Rated permanent current Iu250A
Number of poles3
Suitable for fusesNH0, NH1
Max. rated operation voltage Ue AC1000V
