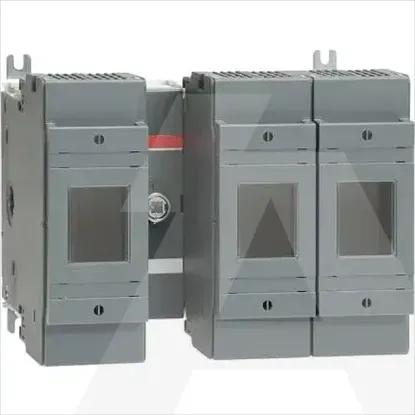

1SCA102207R1001 | OS250D12BBP
Code: 1630857
ManufacturerABB
Catalog number1SCA102207R1001
TypeOS250D12BBP
CategoryFuse switch disconnector
EAN code6417019369877
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Version as emergency stop installationNo
Motor drive integratedNo
Version as main switchYes
Type of control elementLong turning handle
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw8kA
Rated operation power at AC-23, 400 V250kW
Version as safety switchYes
Suitable for floor mountingNo
Suitable for front mountingNo
Suitable for busbar mountingYes
With error protectionNo
Motor drive optionalNo
Equipped with connectorsYes
Position control elementFront side
Rated permanent current Iu250A
Number of poles3
Suitable for fusesNH0, NH1
Max. rated operation voltage Ue AC1000V
