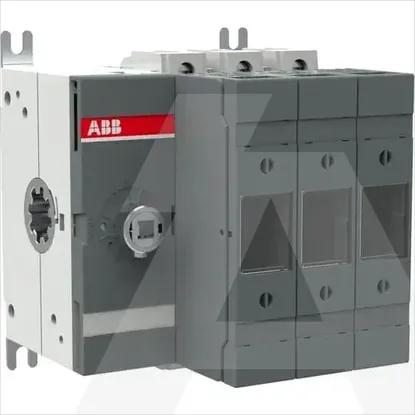

1SCA115234R1001 | OS63GB03
Code: 1630869
ManufacturerABB
Catalog number1SCA115234R1001
TypeOS63GB03
CategoryFuse switch disconnector
EAN code6417019476599
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Rated operation power at AC-23, 400 V55kW
Suitable for front mountingNo
Motor drive optionalNo
With error protectionNo
Version as safety switchYes
Suitable for floor mountingNo
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Suitable for busbar mountingYes
Rated short-time withstand current lcw2.5kA
Version as main switchYes
Equipped with connectorsYes
Position control elementLeft
Rated permanent current Iu63A
Number of poles3
Suitable for fusesShape A2/A3
Max. rated operation voltage Ue AC1000V
