Details
- •Low-voltage industrial components

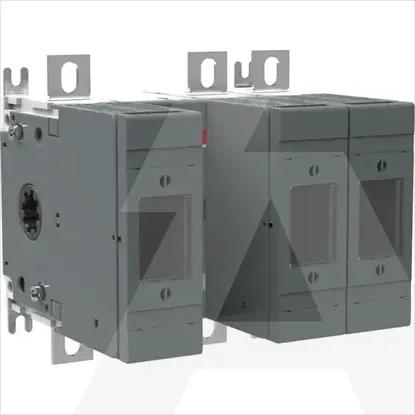

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu125A
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq80kA
Number of poles3
Cable entryOther
Rated operation power at AC-23, 400 V110kW
Version as main switchYes
Version as safety switchYes
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Suitable for fuses22x58 mm
Rated short-time withstand current lcw5kA
Suitable for floor mountingNo
Suitable for front mountingNo
Motor drive optionalNo
Equipped with connectorsYes
With error protectionNo
Max. rated operation voltage Ue AC1000V
Position control elementFront side
Suitable for busbar mountingYes
