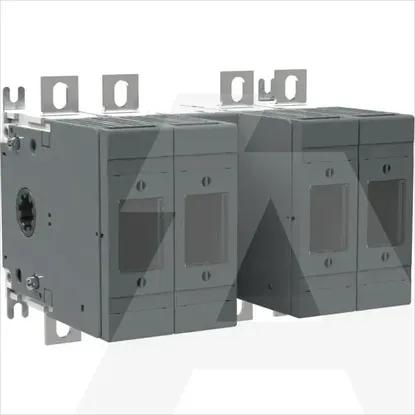

1SCA116800R1001 | OS160GD22F
Code: 1630889
ManufacturerABB
Catalog number1SCA116800R1001
TypeOS160GD22F
CategoryFuse switch disconnector
EAN code6417019488783
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V132kW
Version as safety switchYes
Version as main switchYes
Motor drive integratedNo
Type of control elementShort thumb-grip
Suitable for floor mountingNo
Rated short-time withstand current lcw5kA
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Suitable for front mountingNo
Position control elementFront side
With error protectionNo
Motor drive optionalNo
Equipped with connectorsYes
Suitable for busbar mountingYes
Rated permanent current Iu160A
Number of poles4
Suitable for fusesNH000, NH00
Max. rated operation voltage Ue AC1000V
