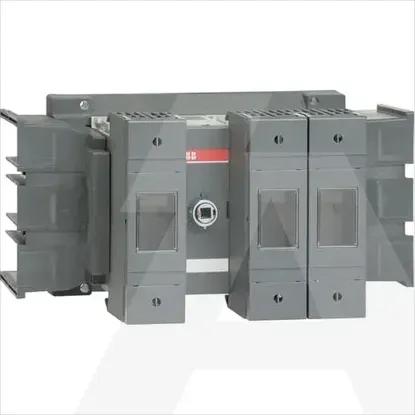

1SCA120267R1001 | OS160GD12LRP
Code: 1630899
ManufacturerABB
Catalog number1SCA120267R1001
TypeOS160GD12LRP
CategoryFuse switch disconnector
EAN code6417019517803
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as safety switchYes
Cable entryOther
Rated short-time withstand current lcw5kA
Suitable for floor mountingNo
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Version as main switchYes
Motor drive integratedNo
Rated operation power at AC-23, 400 V132kW
Type of control elementLong turning handle
Suitable for front mountingNo
With error protectionNo
Suitable for busbar mountingYes
Motor drive optionalNo
Position control elementFront side
Equipped with connectorsYes
Rated permanent current Iu160A
Number of poles3
Suitable for fusesNH000, NH00
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
