Details
- •Low-voltage industrial components

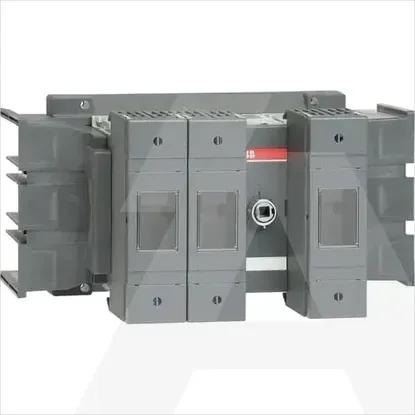

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu160A
Number of poles3
Rated operation power at AC-23, 400 V132kW
Version as safety switchYes
Version as main switchYes
Cable entryOther
Version as emergency stop installationNo
Suitable for front mountingNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Suitable for busbar mountingYes
Suitable for floor mountingNo
Suitable for fusesNH000, NH00
With error protectionNo
Rated short-time withstand current lcw5kA
Max. rated operation voltage Ue AC1000V
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Motor drive optionalNo
Position control elementFront side
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA120294R1001 | OS160GD21LRP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated permanent current Iu
160A
Number of poles
3
Rated operation power at AC-23, 400 V
132kW
Version as safety switch
Version as main switch
Cable entry
Other
Version as emergency stop installation
Suitable for front mounting
Type of electrical connection of main circuit
Bolt connection
Type of control element
Long turning handle
Suitable for busbar mounting
Suitable for floor mounting
Suitable for fuses
NH000, NH00
With error protection
Rated short-time withstand current lcw
5kA
Max. rated operation voltage Ue AC
1000V
Motor drive integrated
Conditioned rated short-circuit current Iq
80kA
Motor drive optional
Position control element
Front side
Equipped with connectors
