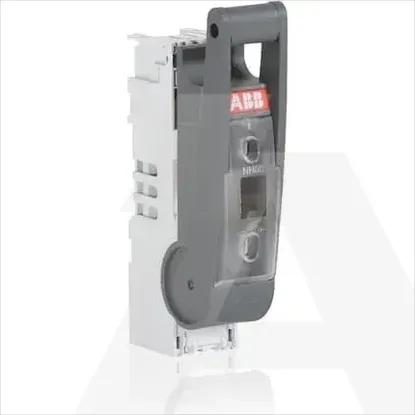

1SEP600113R0001 | XLP00-1P
Code: 1630934
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles1
Type of control elementOther
Rated permanent current Iu125A
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Motor drive optionalNo
Degree of protection (IP), front sideIP30
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq50kA
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V-kW
Version as emergency stop installationNo
Version as main switchYes
Version as safety switchYes
Rated short-time withstand current lcw-kA
Cable entryOther
Suitable for front mountingNo
With error protectionNo
Suitable for busbar mountingYes
Suitable for fusesNH000, NH00
Position control elementFront side
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
