Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Cable entryOther
With error protectionNo
Type of control elementOther
Suitable for fusesNH000, NH00
Motor drive integratedNo
Rated short-time withstand current lcw-kA
Suitable for floor mountingNo
Version as safety switchYes
Rated operation power at AC-23, 400 V-kW
Motor drive optionalNo
Degree of protection (IP), front sideIP30
Suitable for front mountingNo
Suitable for busbar mountingYes
Position control elementFront side
Conditioned rated short-circuit current Iq50kA
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Rated permanent current Iu160A
Max. rated operation voltage Ue AC690V
Number of poles4
Equipped with connectorsNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

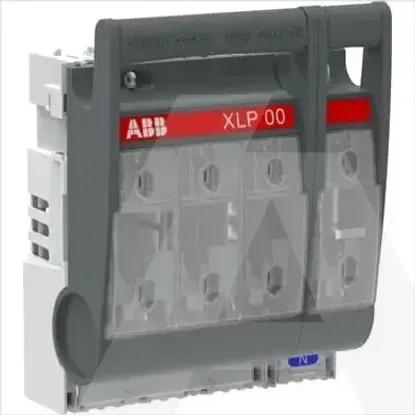

1SEP600115R0001 | XLP00-4P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Version as main switch
Cable entry
Other
With error protection
Type of control element
Other
Suitable for fuses
NH000, NH00
Motor drive integrated
Rated short-time withstand current lcw
-kA
Suitable for floor mounting
Version as safety switch
Rated operation power at AC-23, 400 V
-kW
Motor drive optional
Degree of protection (IP), front side
IP30
Suitable for front mounting
Suitable for busbar mounting
Position control element
Front side
Conditioned rated short-circuit current Iq
50kA
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
Rated permanent current Iu
160A
Max. rated operation voltage Ue AC
690V
Number of poles
4
Equipped with connectors
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
