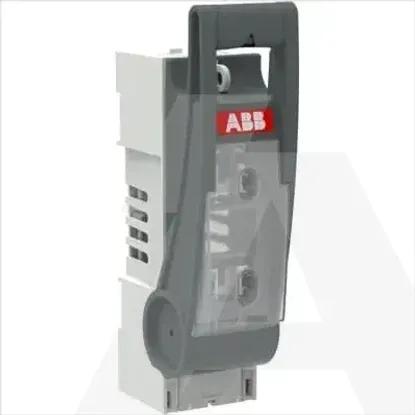

1SEP600116R0003 | XLP1-1P-2M10
Code: 1630944
ManufacturerABB
Catalog number1SEP600116R0003
TypeXLP1-1P-M10
CategoryFuse switch disconnector
EAN code7025840086598
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Suitable for floor mountingNo
Suitable for front mountingNo
Suitable for busbar mountingYes
Cable entryOther
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Degree of protection (IP), front sideIP30
Conditioned rated short-circuit current Iq50kA
Version as main switchYes
Rated operation power at AC-23, 400 V-kW
Type of control elementOther
Rated short-time withstand current lcw-kA
Version as safety switchYes
With error protectionNo
Motor drive optionalNo
Equipped with connectorsYes
Position control elementFront side
Rated permanent current Iu200A
Number of poles1
Suitable for fusesNH1
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SEP600116R0003 | XLP1-1P-2M10
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Suitable for floor mounting
Suitable for front mounting
Suitable for busbar mounting
Cable entry
Other
Version as emergency stop installation
Type of electrical connection of main circuit
Bolt connection
Motor drive integrated
Degree of protection (IP), front side
IP30
Conditioned rated short-circuit current Iq
50kA
Version as main switch
Rated operation power at AC-23, 400 V
-kW
Type of control element
Other
Rated short-time withstand current lcw
-kA
Version as safety switch
With error protection
Motor drive optional
Equipped with connectors
Position control element
Front side
Rated permanent current Iu
200A
Number of poles
1
Suitable for fuses
NH1
Max. rated operation voltage Ue AC
690V
