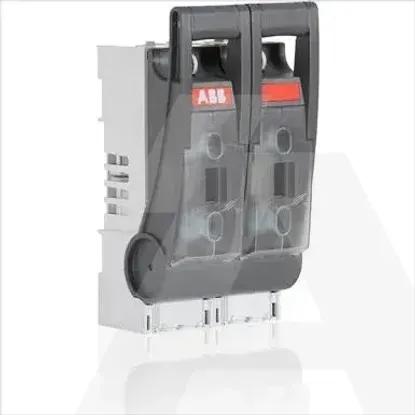

1SEP600117R0002 | XLP1-2P-4BC
Code: 1630946
ManufacturerABB
Catalog number1SEP600117R0002
TypeXLP1-2P-4BC
CategoryFuse switch disconnector
EAN code7025840086611
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitCable clamp
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq50kA
Motor drive integratedNo
Suitable for front mountingNo
Type of control elementOther
Version as emergency stop installationNo
Version as main switchYes
Version as safety switchYes
Rated short-time withstand current lcw-kA
Rated operation power at AC-23, 400 V-kW
Degree of protection (IP), front sideIP30
Equipped with connectorsYes
With error protectionNo
Position control elementFront side
Motor drive optionalNo
Suitable for busbar mountingYes
Rated permanent current Iu200A
Number of poles2
Suitable for fusesNH1
Max. rated operation voltage Ue AC690V
