1SEP600119R0001 | XLP1-4P
Code: 1630948
ManufacturerABB
Catalog number1SEP600119R0001
TypeXLP1-4P

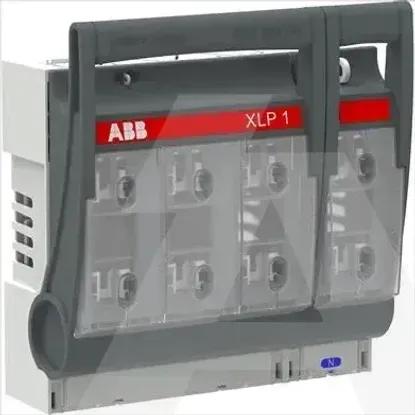

CategoryFuse switch disconnector
EAN code7025840086635
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Degree of protection (IP), front sideIP30
Conditioned rated short-circuit current Iq50kA
Type of control elementOther
Suitable for front mountingNo
Motor drive integratedNo
Equipped with connectorsYes
Rated operation power at AC-23, 400 V-kW
Version as safety switchYes
Position control elementFront side
Suitable for floor mountingNo
Type of electrical connection of main circuitBolt connection
Suitable for busbar mountingYes
Motor drive optionalNo
With error protectionNo
Rated short-time withstand current lcw-kA
Version as main switchYes
Version as emergency stop installationNo
Rated permanent current Iu250A
Number of poles4
Suitable for fusesNH1
Max. rated operation voltage Ue AC500V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SEP600119R0001 | XLP1-4P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Degree of protection (IP), front side
IP30
Conditioned rated short-circuit current Iq
50kA
Type of control element
Other
Suitable for front mounting
Motor drive integrated
Equipped with connectors
Rated operation power at AC-23, 400 V
-kW
Version as safety switch
Position control element
Front side
Suitable for floor mounting
Type of electrical connection of main circuit
Bolt connection
Suitable for busbar mounting
Motor drive optional
With error protection
Rated short-time withstand current lcw
-kA
Version as main switch
Version as emergency stop installation
Rated permanent current Iu
250A
Number of poles
4
Suitable for fuses
NH1
Max. rated operation voltage Ue AC
500V
