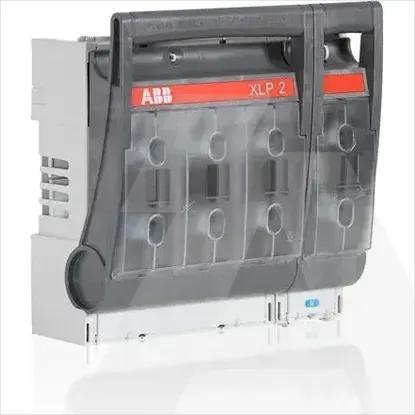

1SEP600124R0001 | XLP2-4P
Code: 1630954
ManufacturerABB
Catalog number1SEP600124R0001
TypeXLP2-4P
CategoryFuse switch disconnector
EAN code7025840086703
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP), front sideIP30
Conditioned rated short-circuit current Iq50kA
Version as emergency stop installationNo
Cable entryOther
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Version as safety switchYes
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw-kA
Suitable for floor mountingNo
Suitable for busbar mountingYes
Type of control elementOther
Suitable for front mountingNo
With error protectionNo
Version as main switchYes
Equipped with connectorsYes
Position control elementFront side
Motor drive optionalNo
Rated permanent current Iu400A
Number of poles4
Suitable for fusesNH2
Max. rated operation voltage Ue AC500V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SEP600124R0001 | XLP2-4P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Degree of protection (IP), front side
IP30
Conditioned rated short-circuit current Iq
50kA
Version as emergency stop installation
Cable entry
Other
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Version as safety switch
Rated operation power at AC-23, 400 V
-kW
Rated short-time withstand current lcw
-kA
Suitable for floor mounting
Suitable for busbar mounting
Type of control element
Other
Suitable for front mounting
With error protection
Version as main switch
Equipped with connectors
Position control element
Front side
Motor drive optional
Rated permanent current Iu
400A
Number of poles
4
Suitable for fuses
NH2
Max. rated operation voltage Ue AC
500V
