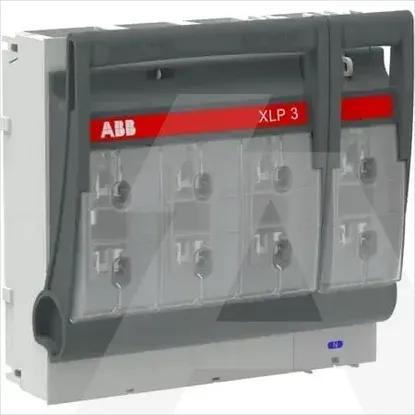

1SEP600128R0001 | XLP3-4P
Code: 1630960
ManufacturerABB
Catalog number1SEP600128R0001
TypeXLP3-4P
CategoryFuse switch disconnector
EAN code7025840086765
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Motor drive integratedNo
Conditioned rated short-circuit current Iq50kA
Degree of protection (IP), front sideIP30
Version as safety switchYes
Suitable for busbar mountingYes
Version as main switchYes
Type of control elementOther
Equipped with connectorsYes
Suitable for front mountingNo
Rated operation power at AC-23, 400 V-kW
Position control elementFront side
With error protectionNo
Version as emergency stop installationNo
Rated short-time withstand current lcw-kA
Motor drive optionalNo
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Rated permanent current Iu630A
Number of poles4
Suitable for fusesNH3
Max. rated operation voltage Ue AC500V
