Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryFloor (bottom)
Rated permanent current Iu160A
Number of poles3
Suitable for floor mountingNo
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw-kA
Version as emergency stop installationNo
Degree of protection (IP), front sideIP30
Version as main switchNo
Rated operation power at AC-23, 400 V-kW
Version as safety switchNo
Motor drive integratedNo
Type of control elementOther
Conditioned rated short-circuit current Iq100kA
Suitable for fusesNH00
Suitable for front mountingNo
Suitable for busbar mountingYes
Max. rated operation voltage Ue AC690V
Equipped with connectorsNo
With error protectionNo
Position control elementFront side
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

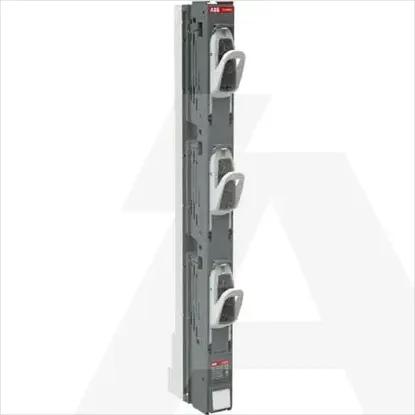

1SEP620010R1000 | ZLBM00-1P-M8
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Floor (bottom)
Rated permanent current Iu
160A
Number of poles
3
Suitable for floor mounting
Type of electrical connection of main circuit
Bolt connection
Rated short-time withstand current lcw
-kA
Version as emergency stop installation
Degree of protection (IP), front side
IP30
Version as main switch
Rated operation power at AC-23, 400 V
-kW
Version as safety switch
Motor drive integrated
Type of control element
Other
Conditioned rated short-circuit current Iq
100kA
Suitable for fuses
NH00
Suitable for front mounting
Suitable for busbar mounting
Max. rated operation voltage Ue AC
690V
Equipped with connectors
With error protection
Position control element
Front side
Motor drive optional
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
