Details
- •Low-voltage industrial components

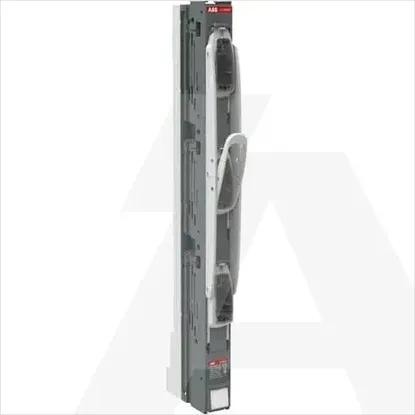

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu160A
Conditioned rated short-circuit current Iq100kA
Cable entryFloor (bottom)
Degree of protection (IP), front sideIP30
Number of poles3
Suitable for fusesNH00
Version as safety switchNo
Type of control elementOther
Rated operation power at AC-23, 400 V-kW
Version as main switchNo
Motor drive integratedNo
Suitable for front mountingNo
Rated short-time withstand current lcw-kA
Type of electrical connection of main circuitCable clamp
Version as emergency stop installationNo
Suitable for floor mountingNo
With error protectionNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Suitable for busbar mountingYes
Position control elementFront side
Equipped with connectorsNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SEP620010R3020 | ZLBM00-3P-V
