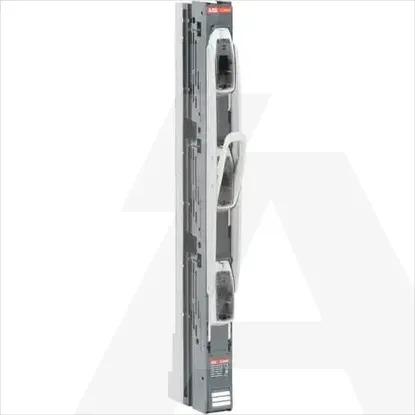

1SEP620020R3020 | ZHBM00-3P-V
Code: 1630978
ManufacturerABB
Catalog number1SEP620020R3020
TypeZHBM00-3P-V
CategoryFuse switch disconnector
EAN code7025840088189
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Motor drive integratedNo
Conditioned rated short-circuit current Iq100kA
Degree of protection (IP), front sideIP30
Type of electrical connection of main circuitCable clamp
Cable entryFloor (bottom)
Suitable for floor mountingNo
Equipped with connectorsNo
Type of control elementOther
With error protectionNo
Motor drive optionalNo
Rated short-time withstand current lcw-kA
Suitable for front mountingNo
Suitable for busbar mountingYes
Position control elementFront side
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Version as main switchNo
Rated permanent current Iu160A
Number of poles3
Suitable for fusesNH00
Max. rated operation voltage Ue AC690V
