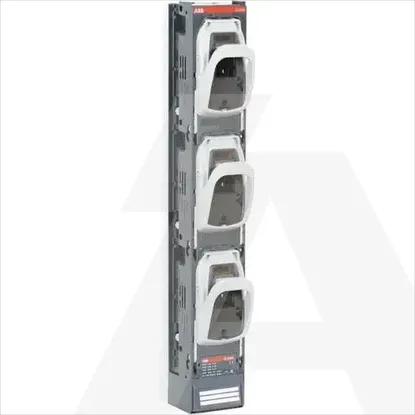

1SEP620022R1000 | ZHBM2-1P-M12
Code: 1630983
ManufacturerABB
Catalog number1SEP620022R1000
TypeZHBM2-1P-M12
CategoryFuse switch disconnector
EAN code7025840088295
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryFloor (bottom)
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Conditioned rated short-circuit current Iq100kA
Degree of protection (IP), front sideIP30
Suitable for floor mountingNo
Version as main switchNo
Type of control elementOther
Suitable for front mountingNo
Rated operation power at AC-23, 400 V-kW
Position control elementFront side
Rated short-time withstand current lcw-kA
Version as emergency stop installationNo
Motor drive optionalNo
With error protectionNo
Version as safety switchNo
Equipped with connectorsNo
Suitable for busbar mountingYes
Rated permanent current Iu400A
Number of poles3
Suitable for fusesNH2
Max. rated operation voltage Ue AC690V
