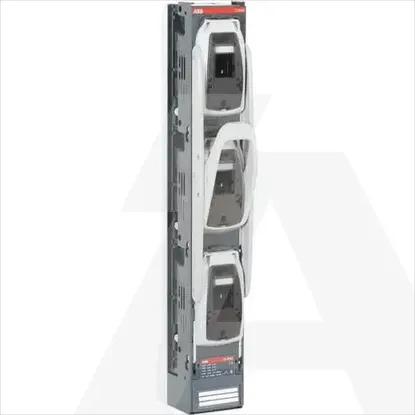

1SEP620022R3000 | ZHBM2-3P-M12
Code: 1630985
ManufacturerABB
Catalog number1SEP620022R3000
TypeZHBM2-3P-M12
CategoryFuse switch disconnector
EAN code7025840088332
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryFloor (bottom)
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Degree of protection (IP), front sideIP30
Position control elementFront side
Rated short-time withstand current lcw-kA
Suitable for floor mountingNo
With error protectionNo
Rated operation power at AC-23, 400 V-kW
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq100kA
Suitable for busbar mountingYes
Motor drive optionalNo
Equipped with connectorsNo
Version as safety switchNo
Suitable for front mountingNo
Type of control elementOther
Version as main switchNo
Rated permanent current Iu400A
Number of poles3
Suitable for fusesNH2
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SEP620022R3000 | ZHBM2-3P-M12
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Floor (bottom)
Type of electrical connection of main circuit
Bolt connection
Motor drive integrated
Degree of protection (IP), front side
IP30
Position control element
Front side
Rated short-time withstand current lcw
-kA
Suitable for floor mounting
With error protection
Rated operation power at AC-23, 400 V
-kW
Version as emergency stop installation
Conditioned rated short-circuit current Iq
100kA
Suitable for busbar mounting
Motor drive optional
Equipped with connectors
Version as safety switch
Suitable for front mounting
Type of control element
Other
Version as main switch
Rated permanent current Iu
400A
Number of poles
3
Suitable for fuses
NH2
Max. rated operation voltage Ue AC
690V
