Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - communication module
- •1 KOM
- •ABB
Technical specifications
Depth59mm
Voltage type of supply voltageDC
Supporting protocol for TCP/IPNo
Supporting protocol for ASINo
Supporting protocol for CANNo
Width22.5mm
Supporting protocol for ModbusNo
Supporting protocol for LONNo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSYes
Supporting protocol for Data-HighwayNo
Suitable for safety functionsNo
Height64mm
Supporting protocol for other bus systemsNo
Explosion safety category for gasNone
Degree of protection (IP)IP20
With potential separationYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SUCONETNo
Front built-in possibleNo
Supporting protocol for SERCOSNo
Rack-assembly possibleNo
Appendant operation agent (Ex ia)No
Appendant operation agent (Ex ib)No
Explosion safety category for dustNone
Rail mounting possibleYes
IO link masterNo
Fieldbus connection over separate bus coupler possibleYes
System accessoryYes
Performance level according to EN ISO 13849-1None
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for INTERBUS-SafetyNo
Radio standard BluetoothNo
Supporting protocol for EtherNet/IPNo
Radio standard Wi-Fi 802.11No
Wall mounting/direct mountingYes
Supporting protocol for DeviceNetNo
Supporting protocol for PROFINET IONo
Supply voltage AC 60 Hz- - -V
SIL according to IEC 61508None
Supporting protocol for PROFINET CBANo
Supply voltage AC 50 Hz- - -V
Radio standard GPRSNo
Radio standard LTENo
Supply voltage DC24 - 24V
Supporting protocol for SafetyBUS pNo
Radio standard eGPRSNo
Radio standard UMTSNo
Radio standard GSMNo
Supporting protocol for PROFIsafeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

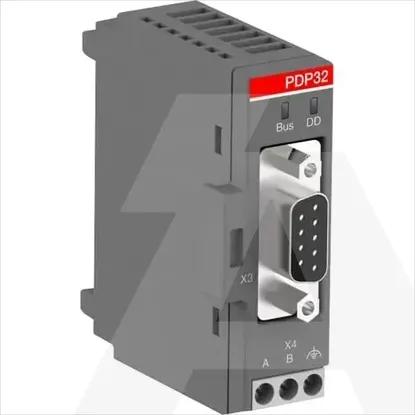

1SAJ242000R0001 | PDP32
