Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Overload release current setting4.0 - 6.3A
Type of control elementTurn button
Number of auxiliary contacts as change-over contact0
Adjustment range short-term delayed short-circuit release- - -A
With switched-off indicatorYes
Motor drive integratedNo
Position of connection for main current circuitFront side
Device constructionComplete device in housing
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
Integrated earth fault protectionNo
Number of auxiliary contacts as normally closed contact0
DIN rail (top hat rail) mounting optionalYes
With under voltage releaseNo
Degree of protection (IP)IP20
Adjustment range undelayed short-circuit release126 - 126A
Suitable for DIN rail (top hat rail) mountingYes
Complete device with protection unitYes
Rated permanent current Iu6.3A
Number of poles3
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

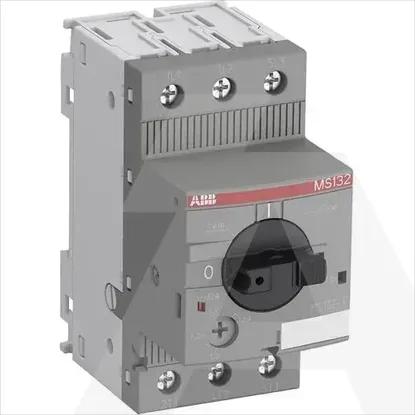

1SAM340000R1009 | MS132-6.3T
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally open contact
0
Overload release current setting
4.0 .. 6.3A
Type of control element
Turn button
Number of auxiliary contacts as change-over contact
0
Adjustment range short-term delayed short-circuit release
- .. -A
With switched-off indicator
Motor drive integrated
Position of connection for main current circuit
Front side
Device construction
Complete device in housing
Motor drive optional
Type of electrical connection of main circuit
Screw connection
Integrated earth fault protection
Number of auxiliary contacts as normally closed contact
0
DIN rail (top hat rail) mounting optional
With under voltage release
Degree of protection (IP)
IP20
Adjustment range undelayed short-circuit release
126 .. 126A
Suitable for DIN rail (top hat rail) mounting
Complete device with protection unit
Rated permanent current Iu
6.3A
Number of poles
3
Rated voltage
690 .. 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
100kA
