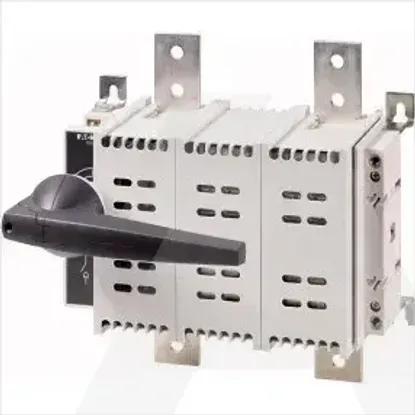

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width230mm
Height160mm
Number of auxiliary contacts as normally closed contact1
Rated operating voltage1000 - 1000V
Depth345mm
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact1
Number of poles2
Rated permanent current Iu1000A
InterlockableYes
Rated operation power at AC-3, 400 V0kW
Number of switches1
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq0kA
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Type of control elementLong turning handle
Suitable for front mounting 4-holeNo
Colour control elementGrey
Rated operation power at AC-23, 400 V0kW
Version as safety switchNo
Rated short-time withstand current lcw25kA
Suitable for floor mountingYes
Version as main switchYes
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V0A
Rated permanent current at AC-23, 400 V0A
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Motor drive optionalNo
Switching power at 400 V0kW
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC1000V
Version as reversing switchNo
With pre-assembled cablingNo
Suitable for intermediate mountingNo
