Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles2
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V0kW
Width230mm
Number of auxiliary contacts as normally closed contact1
Rated operating voltage1000 - 1000V
Depth345mm
Rated permanent current Iu1000A
Height160mm
Number of switches1
Conditioned rated short-circuit current Iq0kA
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
InterlockableYes
Degree of protection (IP), front sideIP20
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Rated short-time withstand current lcw25kA
Version as maintenance-/service switchYes
Version as main switchYes
Type of control elementLong turning handle
Version as safety switchNo
Rated operation power at AC-23, 400 V0kW
Suitable for front mounting centreNo
Colour control elementGrey
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V0A
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Rated permanent current at AC-21, 400 V0A
Max. rated operation voltage Ue AC1000V
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V0kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

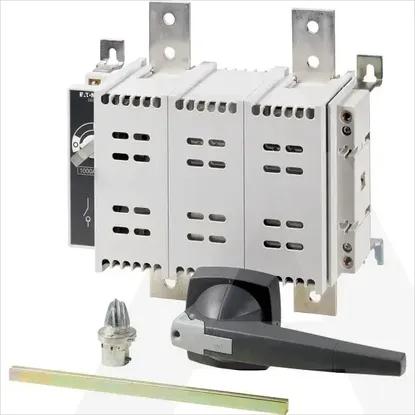

DDC-1000/2/M4/P-G
