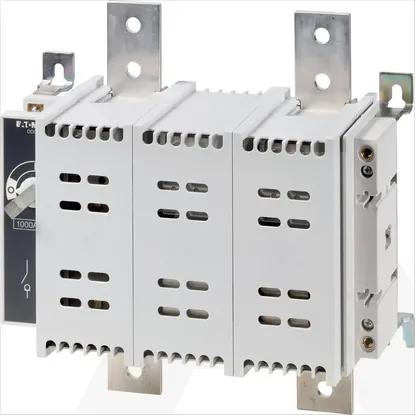

DDC-1000/2-SK
Code: 1634200
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as reversing switchNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V0kW
Version as emergency stop installationNo
Number of switches1
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Rated permanent current at AC-21, 400 V0A
Suitable for front mounting 4-holeNo
Version as safety switchNo
Voltage release optionalNo
Suitable for floor mountingYes
Rated short-time withstand current lcw25kA
Colour control elementOther
Type of control elementOther
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC1000V
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact1
Rated operation power at AC-3, 400 V0kW
Rated permanent current at AC-23, 400 V0A
Suitable for front mounting centreNo
Rated permanent current Iu1000A
Suitable for distribution board installationNo
InterlockableNo
Switching power at 400 V0kW
Conditioned rated short-circuit current Iq0kA
Type of electrical connection of main circuitScrew connection
Width230mm
Motor drive integratedNo
Number of poles2
Device constructionBuilt-in device fixed built-in technique
With pre-assembled cablingNo
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact1
Degree of protection (NEMA)Other
Depth345mm
Height160mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
