Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height160mm
Depth345mm
Rated permanent current Iu1250A
Width230mm
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Rated operation power at AC-3, 400 V0kW
Degree of protection (IP), front sideIP20
Rated operating voltage1000 - 1000V
Number of switches1
InterlockableYes
Motor drive integratedNo
Conditioned rated short-circuit current Iq0kA
Number of poles2
Number of auxiliary contacts as change-over contact0
Colour control elementGrey
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Version as main switchYes
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Version as safety switchNo
Rated operation power at AC-23, 400 V0kW
Max. rated operation voltage Ue AC1000V
Voltage release optionalNo
Type of control elementLong turning handle
Version as emergency stop installationNo
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
Rated short-time withstand current lcw25kA
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated permanent current at AC-23, 400 V0A
Rated permanent current at AC-21, 400 V0A
Switching power at 400 V0kW
Suitable for distribution board installationNo
Suitable for floor mountingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

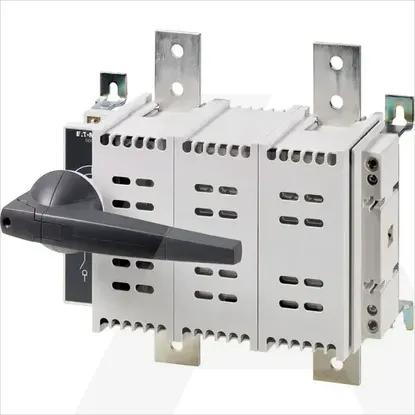

DDC-1250/2
