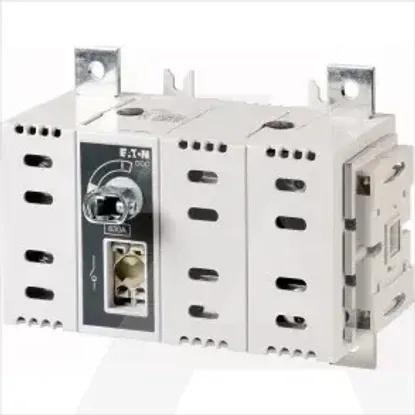

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles2
Number of auxiliary contacts as normally closed contact2
Depth240mm
Height129mm
Conditioned rated short-circuit current Iq0kA
Rated permanent current Iu250A
Degree of protection (IP), front sideIP20
Width127mm
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact2
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as change-over contact0
Number of switches1
Motor drive optionalNo
InterlockableNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V0kW
Motor drive integratedNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Colour control elementOther
Version as safety switchNo
Type of control elementOther
Suitable for floor mountingYes
Voltage release optionalNo
Max. rated operation voltage Ue AC1000V
Device constructionBuilt-in device fixed built-in technique
Version as emergency stop installationNo
Rated short-time withstand current lcw15kA
Version as main switchYes
Rated permanent current at AC-23, 400 V0A
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V0A
Switching power at 400 V0kW
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DDC-250/2-SK
