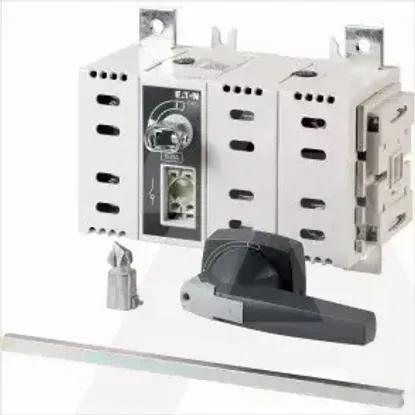

DDC-400/2/M4/P-G
Code: 1634217
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as maintenance-/service switchYes
Rated operating voltage1000 - 1000V
Max. rated operation voltage Ue AC1000V
Rated permanent current Iu400A
Version as emergency stop installationNo
Version as safety switchNo
Number of switches1
Version as reversing switchNo
Rated operation power at AC-3, 400 V0kW
Rated permanent current at AC-23, 400 V0A
Rated permanent current at AC-21, 400 V0A
Rated operation power at AC-23, 400 V0kW
Rated short-time withstand current lcw15kA
Conditioned rated short-circuit current Iq0kA
Switching power at 400 V0kW
Number of poles2
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Motor drive optionalNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Colour control elementGrey
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP20
InterlockableYes
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Width127mm
Depth240mm
Height129mm
